Key Takeaways
- Proper grade clearance prevents capillary action and splash-back damage to EIFS systems
- Continuous drainage planes at the termination point are essential for long-term moisture management
- Flashing integration with water-resistive barriers creates a complete moisture defense system
- Regular inspection of grade termination details can prevent minor issues from becoming major failures
- Professional installation following manufacturer specifications ensures warranty protection and code compliance

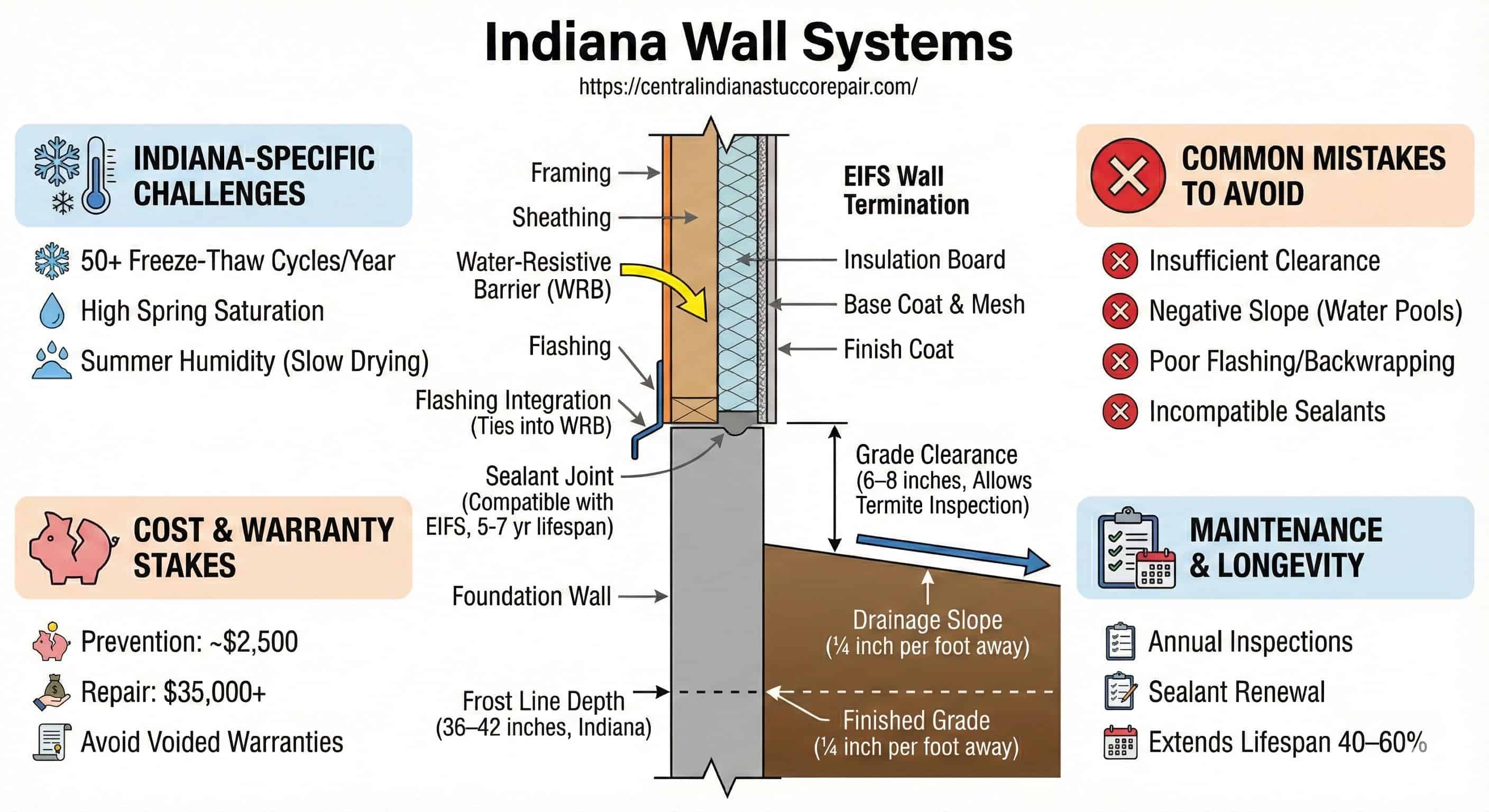

EIFS Grade Termination: Multi-Layer Defense System
Understanding EIFS Grade Termination Fundamentals
EIFS grade termination refers to how the Exterior Insulation and Finish System meets the ground level or foundation. This critical junction requires careful attention to prevent moisture intrusion and maintain the system’s integrity.
Modern EIFS installations must account for several factors at grade level:
Critical Components of Grade Termination
- Minimum clearance requirements above grade
- Drainage plane continuity from wall to foundation
- Flashing integration with the building envelope
- Sealant compatibility with EIFS materials
- Substrate preparation at the termination point
The construction industry has learned valuable lessons about moisture management over the past two decades. Today’s drainage EIFS systems incorporate these lessons into every grade termination detail.
Building Code Requirements and Industry Standards
Local building codes typically require specific clearances between EIFS and grade level. These requirements vary by region, but common standards include:
| Code Requirement | Minimum Distance | Purpose |
|---|---|---|
| Grade Clearance | 6-8 inches | Prevents splash-back and ground moisture |
| Frost Line Consideration | Varies by climate | Protects against freeze-thaw cycles |
| Termite Inspection Gap | 4-6 inches | Allows visual pest inspection |
| Drainage Slope | 1/4 inch per foot | Directs water away from foundation |
The 6-8 inch clearance isn’t arbitrary—it’s based on decades of field data showing that splash-back from rainfall can project up to 6 inches from hard surfaces. Similarly, the termite inspection gap must provide visual access for pest control professionals to identify activity without removing EIFS materials.
ASTM E2568 provides specific guidance for grade termination in drainage EIFS systems. Following these standards ensures your installation meets professional benchmarks and maintains manufacturer warranty coverage.
Manufacturer-specific termination details vary significantly between major EIFS brands. Dryvit systems typically require their proprietary Backstop NT flashing, while Sto systems integrate with their WEF drainage mat technology. Master Wall specifications often call for specific termination bead profiles that differ from other manufacturers. Understanding these brand-specific requirements prevents compatibility issues and ensures warranty compliance.
Evolution of Termination Standards
Early barrier EIFS systems often terminated flush with grade, which contributed to widespread moisture failures in the 1980s and 1990s. Today’s drainage EIFS designs address those failures with mandatory clearance, drainage paths, and flashing integration. This evolution reflects hard-learned lessons from thousands of failed installations that taught the industry about moisture management realities.
ICC-ES termination requirements also specify how different EIFS products should interface with foundation materials. These standards help prevent the common mistakes that lead to system failures.
Water Management at Grade Level
Bulk water deflection starts with proper grade termination design. Water reaching the foundation must be directed away from the building through multiple defense layers.
Primary Water Management Strategies
Surface water drainage relies on proper grading around the building perimeter. The ground should slope away from the foundation at a minimum positive drainage slope of 1/4 inch per foot for at least 10 feet.
Perimeter drainage details include:
- Gravel drip strips that create separation between soil and EIFS
- Weep screed systems that channel water away from the termination
- Drainage tracks integrated into the foundation design
- Backwrap moisture seals that protect insulation edges
Capillary break systems prevent ground moisture from wicking up into the EIFS assembly. These breaks use different materials or air gaps to interrupt moisture movement.
Professional Installation Techniques
Substrate Preparation
Proper substrate preparation at base begins before any EIFS materials are applied. The foundation surface must be clean, structurally sound, and properly sealed.

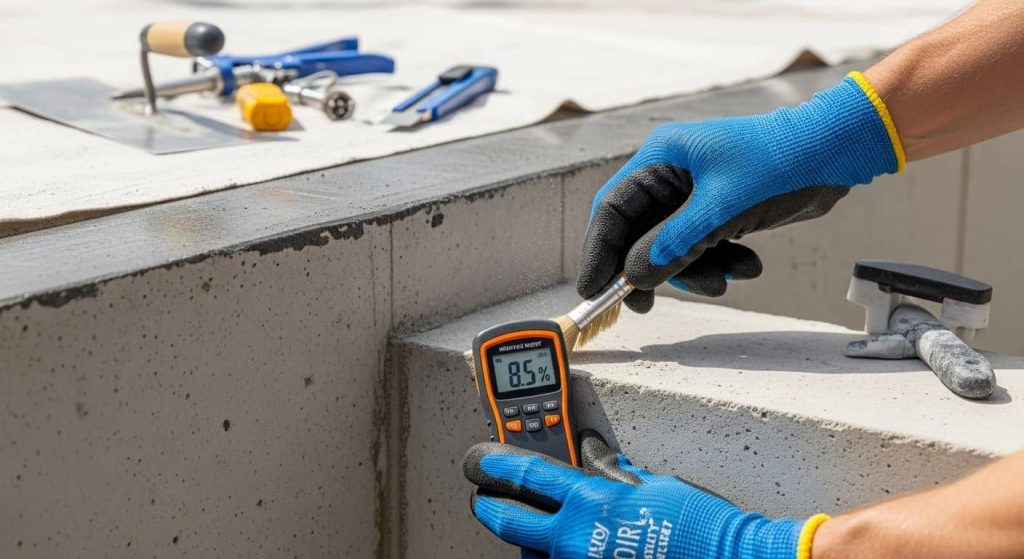

Moisture meter testing should confirm that substrate moisture content meets manufacturer specifications—typically below 12% for wood substrates and properly cured for concrete foundations.
Flashing Integration Methods
Base flashing integration creates the primary moisture barrier at grade level. This flashing must integrate seamlessly with the building’s water-resistive barrier (WRB) system.
Kick-out flashing at grade directs water away from the termination point. This detail is especially important where sidewalks or patios meet the building.
The flashing-to-WRB integration requires specific overlap dimensions—typically 4-6 inches—and compatible sealant materials that won’t degrade over time.
Sealant Application Best Practices
Waterproof sealant application at grade terminations demands attention to compatibility and longevity. Not all sealants work well with EIFS materials, and some can actually cause premature coating failure.
Material Performance Over Time
Sealants at grade termination face harsher conditions than mid-wall joints due to constant moisture exposure and UV reflection from surrounding surfaces. Even high-quality polyurethane sealants typically require replacement every 5-7 years in these locations, while structural glazing sealants may last 10-15 years with proper application.
Sealant compatibility testing should verify that chosen products won’t affect the EIFS finish or cause adhesion problems. Our team at Indiana Wall Systems always tests sealant compatibility before large-scale application.
Common Grade Termination Mistakes
Cost of Prevention vs. Repair
✓ Warranty protection
✗ Structural damage
✗ Voided warranty
Installation Errors to Avoid
- Insufficient clearance above grade – Leading to splash-back damage
- Missing drainage paths – Causing water accumulation at the base
- Poor flashing integration – Creating direct water entry points
- Inadequate backwrapping – Exposing insulation to moisture
- Improper sealant selection – Resulting in adhesion failures
Common Misinterpretations of Manufacturer Specifications
Even experienced contractors sometimes misread critical specification details. The most frequent errors include treating “minimum clearance” as a flexible suggestion rather than an absolute requirement, overlapping incompatible flashing materials without proper isolation layers, and skipping backwrapping because “it’s just grade-level.” These seemingly minor oversights often lead to major system failures within the first five years.
Negative grade slopes toward the building represent one of the most serious installation errors. Water pooling against EIFS terminations will eventually find its way into the system, regardless of other protective measures.
Missing backwrap at termination points exposes the insulation layer to moisture and mechanical damage. This oversight often isn’t discovered until significant damage has occurred.
Inspection and Maintenance Protocols
Regular Inspection Schedule
Grade termination inspection should occur at least annually, with additional checks after severe weather events. Visual inspection can identify problems before they require major repairs.
Signs of termination failure include:
- Ponding water against the foundation
- Exposed insulation at grade level
- Sealant cracking or pulling away from surfaces
- Delamination of the finish coat near grade
- Mold or algae growth at the termination point
EIFS Grade Termination Inspection Schedule
Early Warning Signs Without Destructive Testing
Experienced contractors can identify termination problems through surface clues that don’t require opening the wall. Staining or efflorescence patterns often indicate moisture movement behind the finish. Uneven algae growth suggests areas where moisture lingers longer than others. Subtle bulging at the base of the wall frequently signals insulation saturation or substrate movement that’s compromising the termination seal.
Moisture Detection Methods
Moisture meter readings at the base of EIFS systems can detect problems before they become visible. Elevated readings often indicate compromised termination details or drainage issues.
Thermal imaging can reveal moisture patterns behind the finish that aren’t yet visible to the naked eye. This technology helps identify problems while they’re still manageable.
Energy Efficiency Benefits of Proper Termination
Grade termination energy efficiency extends beyond moisture control. Properly detailed terminations eliminate thermal bridging and maintain the continuous insulation layer that makes EIFS so effective.
Thermal bridging prevention at the base requires careful attention to insulation continuity. Gaps in the insulation layer create paths for heat loss and potential condensation problems.
The connection between proper termination and energy savings with EIFS becomes apparent in heating and cooling bills. Buildings with well-detailed grade terminations consistently perform better in energy audits.
Regional Considerations for Indiana Buildings
Indiana Climate Challenges for EIFS Termination
Indiana’s climate presents specific challenges for EIFS grade termination design. Freeze-thaw cycles, heavy rainfall, and temperature variations all affect termination performance.
Frost line considerations in central Indiana typically require terminations to account for frost depths of 36-42 inches. This affects foundation design and termination details.
Seasonal moisture management becomes critical during spring thaw periods when ground saturation levels peak. Proper drainage design prevents these seasonal moisture loads from affecting EIFS systems.
Site-Specific Microclimate Factors
Building orientation significantly affects termination performance. North-facing walls that stay damp longer require more robust drainage details and may need upgraded sealant specifications. Locations with heavy snow pile-up need higher clearances to account for accumulated frozen precipitation. Buildings near irrigation systems or reflective hardscapes like concrete parking lots face increased moisture exposure and thermal cycling stress.
Our work in Carmel, Fishers, and Indianapolis has shown how regional building practices must adapt to local conditions while maintaining national standards.
Commercial vs. Residential Applications
Commercial EIFS grade requirements often involve more complex details due to building size and use patterns. Larger buildings create more significant water loads that termination systems must handle.
Pedestrian traffic around commercial buildings affects grade termination design. Sidewalks, landscaping, and building access all influence how terminations are detailed and protected.
Residential termination rules focus more on long-term maintenance accessibility and compatibility with typical homeowner maintenance practices.
Advanced Termination Solutions
Modern Drainage Systems
Drainage EIFS systems incorporate multiple moisture management features at grade level. These systems assume some water will enter the assembly and provide paths for it to exit safely.
Water management systems in modern EIFS include:
- Drainage cavities behind the insulation layer
- Weep holes at the termination point
- Moisture barriers integrated with flashing systems
- Capillary breaks that interrupt moisture movement
Innovative Materials and Methods
Termination profile innovations continue improving system performance. New termination beads and edge protection systems offer better water management and installation efficiency.
Sealant technology advances provide longer-lasting moisture barriers that maintain adhesion through multiple freeze-thaw cycles.
Professional Installation vs. DIY Risks
Professional Installation vs. DIY Risk Assessment
The complexity of proper EIFS grade termination makes this detail unsuitable for DIY installation. Professional EIFS installation ensures compliance with manufacturer specifications and building codes.
Installation guidelines from EIFS manufacturers specify exact procedures for grade terminations. Deviating from these procedures can void warranty coverage and create liability issues.
Field-applied termination details require experience with multiple EIFS products and local building conditions. What works in dry climates may fail in Indiana’s moisture-rich environment.
Warranty implications make proper termination even more critical for building owners. Most EIFS manufacturers void warranty coverage when grade terminations don’t meet their published specifications. Since these warranties often cover 15-20 years of system performance, improper termination details can eliminate tens of thousands of dollars in manufacturer protection for relatively minor installation shortcuts.
Cost Implications of Poor Termination
Improper termination height costs significantly more to fix after installation than to get right initially. Raising grade terminations often requires excavation and reworking substantial portions of the system.
Water damage repairs from failed terminations frequently cost 10-20 times more than proper initial installation. Prevention truly pays in EIFS work.
The investment in proper termination details—typically 3-5% of total project cost—provides insurance against much larger repair expenses later.
Maintenance Best Practices
Annual Maintenance Tasks
- Clear drainage paths of debris and vegetation
- Inspect sealant joints for cracking or adhesion loss
- Check grade slopes for settling or erosion
- Remove algae or mold from termination areas
- Verify clearance dimensions haven’t been compromised
Maintenance intervals for grade terminations depend on environmental exposure and system age. High-moisture environments require more frequent attention.
Professional Maintenance Services
Sealant renewal at grade terminations should be performed by experienced contractors familiar with EIFS compatibility requirements. Using incompatible sealants can cause more problems than they solve.
Our maintenance programs include regular termination inspections and preventive sealant replacement on scheduled intervals.
Future Developments in Termination Design
Smart termination systems incorporating moisture sensors and automated drainage are being developed for high-performance buildings. These systems provide real-time feedback on moisture conditions.
Integrated building envelope approaches consider EIFS terminations as part of a complete moisture management strategy rather than isolated details.
Sustainability considerations increasingly influence termination design choices. Materials with lower environmental impact and longer service lives become more important in specification decisions.
Frequently Asked Questions
What is the minimum clearance required between EIFS and grade level?
Most building codes require 6-8 inches minimum clearance between EIFS and grade level. This distance prevents splash-back damage and allows for termite inspection access while maintaining proper moisture management.
How often should EIFS grade terminations be inspected?
Annual inspections are recommended for most installations, with additional checks after severe weather events. High-moisture environments or older systems may require more frequent inspection to catch problems early.
Can existing EIFS grade terminations be modified if clearance is insufficient?
Yes, but modification requires professional expertise to maintain system integrity. The process typically involves excavation, new flashing installation, and careful integration with existing materials to prevent water entry.
What causes sealant failure at EIFS grade terminations?
Incompatible sealant materials represent the most common cause of failure. Movement from thermal cycling, UV exposure, and substrate settling also contribute to sealant degradation over time.
How do regional building codes affect EIFS termination requirements?
Local codes vary significantly based on climate conditions and regional construction practices. Indiana codes consider freeze-thaw cycles, while southern regions focus more on humidity and pest prevention requirements.
What’s the difference between barrier and drainage EIFS at grade level?
Barrier EIFS terminations rely entirely on preventing water entry through perfect sealant joints and flashing integration. These systems terminate with a continuous moisture barrier that must remain intact indefinitely. Drainage EIFS systems include weep screeds, drainage cavities, and exit paths that allow water to escape even if some moisture enters the assembly. Drainage terminations incorporate redundant protection layers, making them more forgiving of minor installation imperfections and material aging.
Conclusion
Proper EIFS termination at grade design represents one of the most critical details in any EIFS installation. Getting these details right protects your investment, maintains warranty coverage, and prevents costly moisture-related problems.
The complexity of modern termination systems requires professional expertise and attention to local building conditions. Whether you’re planning a new installation or maintaining an existing system, understanding these principles helps ensure long-term success.
At Indiana Wall Systems, we’ve seen how proper termination details extend system life and reduce maintenance costs. Our 160 years of combined experience has taught us that investing in quality termination work pays dividends for decades.\
